Robotic Cartridge Sampling Instrument

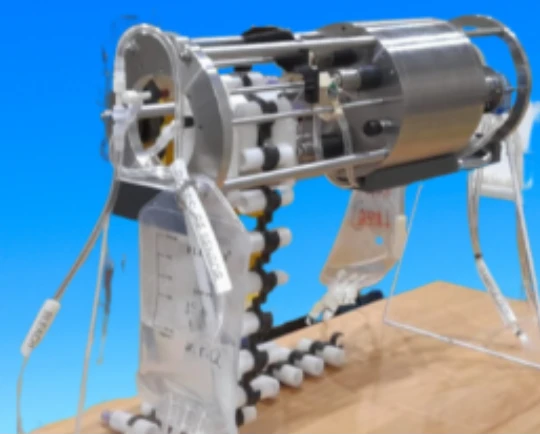

Product Description The Robotic Cartridge Sampling Instrument (RoCSI), is a biomolecular sampler that performs in-situ sample collection and preservation onto 0.22 µm or 0.45 µm Sterivex™ filter cartridges. RoCSI features high sample count capabilities in a compact instrument, that is depth-rated to 6,000 m. Cartridges are stored on a continuous sample belt and are rotated into position for sampling or injecting preservative. The compact size and user-defined sample capacity make the RoCSI ideal for vehicle integration, long-term mooring systems, buoy mounts, bottom landers and ship-board applications.
 Technical Parameter
Technical Parameter
  • Dimensions 17 cm x 18 cm x 53 cm (6.7 in x 7.08 in x 20.86 in)
  • Weight in air 15.5 kg (34 lbs)
  • Weight in seawater 10 kg (22 lbs)
  • Depth rating 6000 m
  • Communications USB to a Windows® interface
  • Power supply 12 V DC /2 A nominal; 16 V max 0.4-0.7 A current at 12 V
  • Electronics Housing Titanium
  • Pump Peristaltic pump
