NavQuest Doppler Velocity Log（DVL）

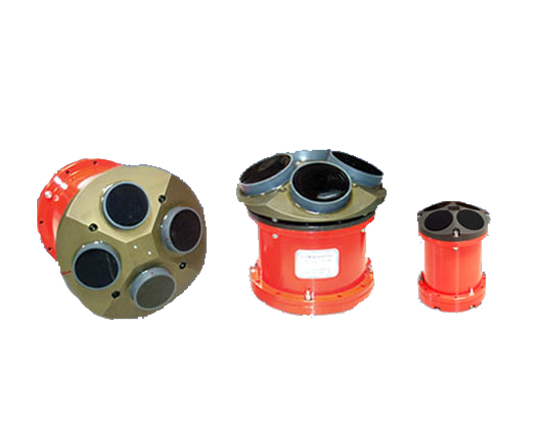

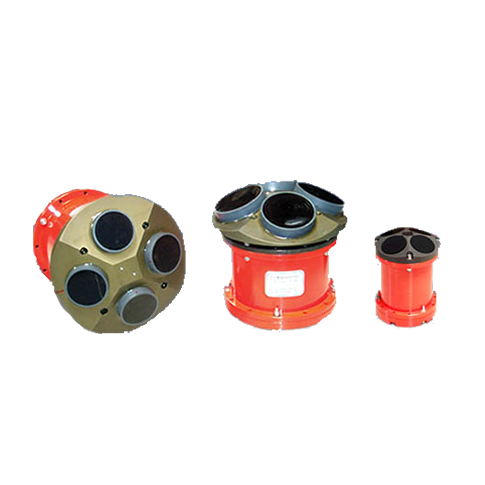

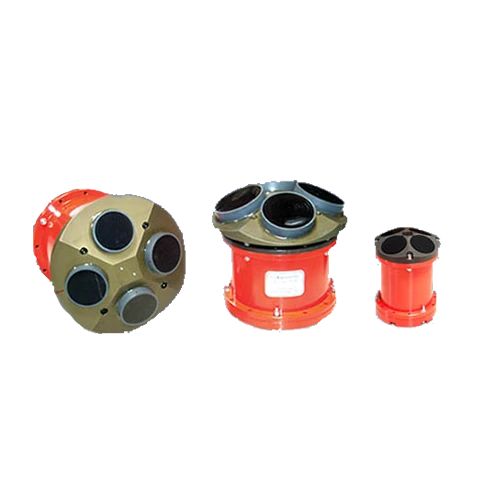

LinkQuest's Acoustic NavQuest Doppler Velocity Log（DVL） is a high-precision underwater navigation and positioning system.

Product Description The acoustic NavQuest Doppler Velocity Log（DVL） uses LinkQuest's leading acoustic Doppler technology and low-power DSP technology to measure speed quickly and accurately, with longer working distance and less height limitation than similar products. The series of products can also seamlessly integrate TrackLink series ultra short baseline positioning system with PinPoint LBL positioning system. It is the best choice for underwater robots, underwater drones and other applications that require accurate navigation and positioning.

Advantage Characteristics

Technical Parameter

Application Scope

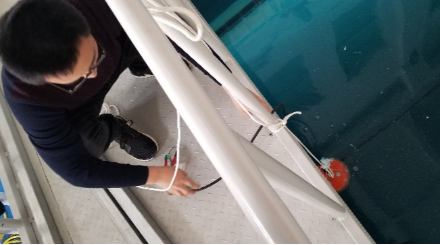

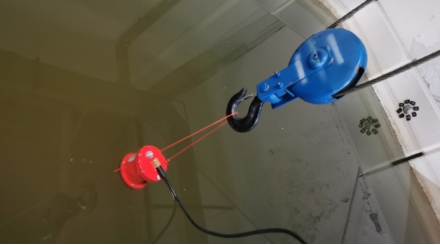

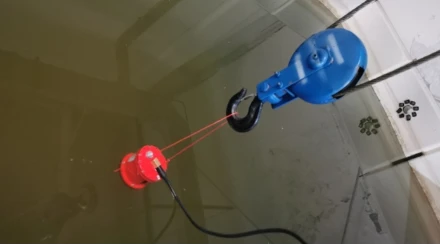

Classic Cases

Advantage Characteristics

Fast and accurate measurement of speed

Longer working distance Less height restriction

Technical Parameter

Model NavQuest 300 / NavQuest 600 / NavQuest 600Micro
Operating frequency 300kHz / 600kHz / 600kHz
Accuracy ±1%，±2mm/s / ±1%，±1mm/s / ±1%，±1mm/s
Maximum height 300m / 140m / 110m
Minimum constructive height 0.6m / 0.3m / 0.3m
Maximum speed ±20 knots / ±20 knots / ±20 knots
Standard pressure depth 800m
Optional pressure depth 1500、3000、or 6000m
Maximum frequency 3/s、5/s、5/s
Maximum transmission power 200W / 100W / 80W
Low power transmission mode 55W / 28W / 1.2W
Receptor 1W / 1W / N/A
Average power 3-10W / 3-10W / 2-5W
Input voltage 24±2V
Transducer 4 Elevation Angle of sound speed
Beam Angle 22°
Cabinet Anodized aluminum in gold and plastic
Communication interface RS232/RS422, 9600 to 115200 baud rate, ASCII/ binary output
Accuracy Compass: ± 2°; Tilt :± 0.5°; Temperature: ± 0.4° C
Measuring range Compass: ± 15°; Tilt :± 15°; Temperature: -5 -- 45° C
Weight in air 9.2kg / 9.2kg / 2.9kg
Weight in water 4.2kg / 4.2kg / 1.2kg
