NOVATECH Radio Beacon & Receiver
NOVATECH Radio Beacon & Receiver it is a Marine submersible beacon equipment recovery and positioning communication device.

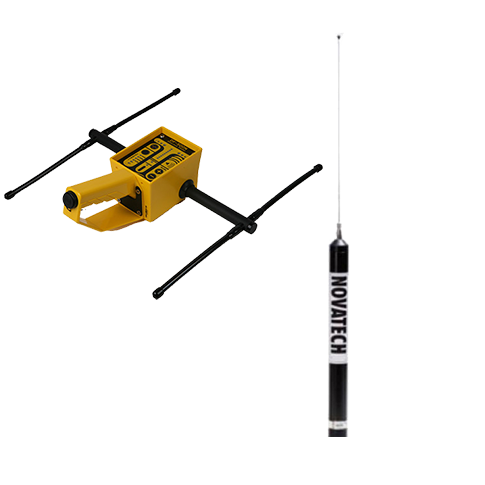

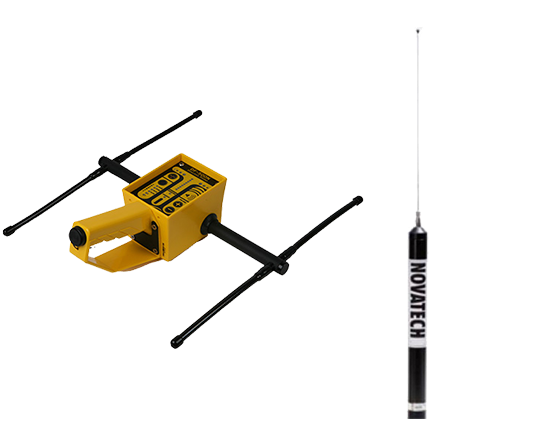

Product Description NOVATECH Radio Beacon & Receiver of a separate underwater radio beacon and a hand-held radio receiver designed to assist in the location and recovery of underwater oceanographic equipment.
Advantage Characteristics Technical Parameter Application Scope Classic Cases
Advantage Characteristics
The FCC certification With a pressure activated switch that can be manually rotated
It can descend to 7,300 meters he working range can reach 4~8 nautical miles
Technical Parameter
  • Diameter of radio beacon 1.70'' (43mm)
  • Radio beacon height 18.5'' (470mm)
  • Weight in air (with battery) 1.6kg（3.6 lb）
  • Weight in water (with battery) 0.95kg（2.1 lb）
  • Output 100 mW; 1 KHZ pulse FM
  • Working period 33%, 2s on, 4s off
  • Frequency range 154.585 MHz. 159.480 MHz. 160.725 MHz. 160.785MHz Other frequencies are optional
  • Range 4~8 n mile
  • Operating temperature -40~60℃
  • Working depth About 7300m (24000ft)
  • Receiver dimensions (including antenna) 18x13x4.5’’（46x33x11cm）
  • Receiver weight (battery included) 0.95kg（2.09 lb）
  • Receiver standard frequency 154.585，159.480，160.725，160.785MHz
  • Range 2~5 miles（3~8km）
  • Working temperature -20~55℃（-4~131°F）
Application Scope
Marine submersible beacon equipment recovery and positioning communication
Classic Cases
South China Sea Institute of Oceanology，CAS
Shanghai university
