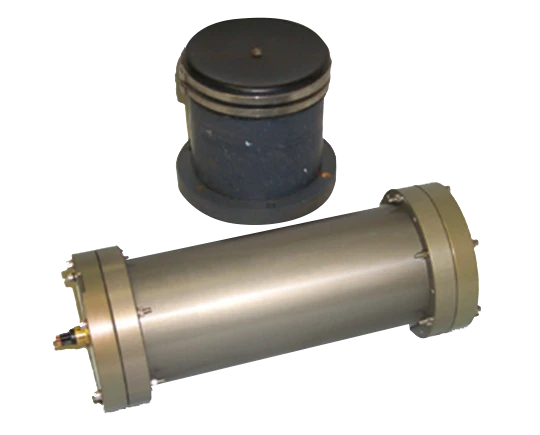

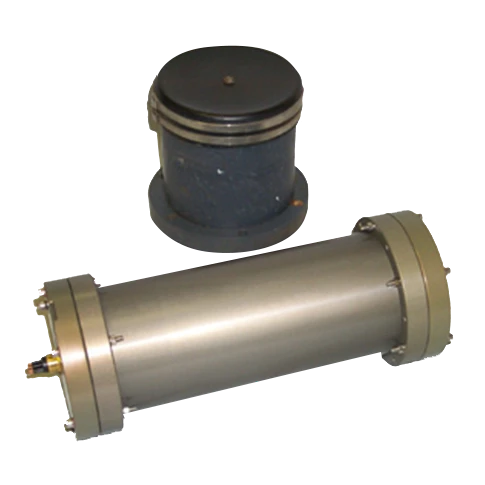

SoundLink Underwater Acoustic Modem（UWM）

The advanced acoustic bandwidth spread spectrum technology is used in the acoustic communication produced by LinkQuest. The underwater acoustic data modulation and demodulation system provided by LinkQuest can effectively overcome the problems of low reliability, low data rate and high power consumption of traditional products in underwater communication.

Product Description The Underwater acoustic Data Modulation and demodulation system is a bidirectional, half-duplex underwater acoustic communication system used in fresh water or sea water. The maximum vertical distance of narrowband acoustic communication is up to 1500 meters, the maximum degree of the bottom unit is up to 1000 meters, and the maximum depth of the water unit is up to 200 meters. The advanced technologies obtained so far are summarized as follows:
The data rate is significantly increased to 38400 bit/s
Bit error rate is less than 10-9
The power consumption is effectively reduced

Advantage Characteristics

Technical Parameter

Application Scope

Classic Cases

Advantage Characteristics

Set a world record for uploading more than 50 Gb of data by a single pair of underwater data transmission systems by an underwater vehicle The world's first long-term high-speed underwater acoustic communication scheme for an offshore drilling platform Set a world record for transmitting more than 800 Mb of wave data in real time using a single battery pack

It's the world's best-selling underwater data transmission system Transmitting more than 95% of the world's underwater acoustic communication data It has built the world's largest underwater acoustic communication network with hundreds of nodes Transfer over 200 Mb of current meter data in less than one year

Technical Parameter

Rs-232 data transmission rate 9600 bits/s
Load data transfer rate 6600 bits/s
Sound connection 17.8 Kb/s
Bit error rate <10-9
Working range Narrow beam 1500 m/ omnidirectional 1200 m
Depth capacity 2000 or 4000 m
Working environment Horizontal or nearly vertical
Transmit mode power consumption Wide beam, narrow beam 2 W/ omnidirectional 8 W
Received mode power consumption 0.8 W
Sleep mode power consumption 8 mW
Sensor beam width Omnidirectional 210°/ narrow beam 70°
Operating frequency 26.77 - 44.62 kHz
Voltage 12 - 24 V
Total lenght 249.7 mm
Diameter of sealing chamber 87.2 - 126.2 mm
Weight in air 4.8 kg
Weight in water 2.6 kg
Rs-232 input cache 900 Kb
High data rate is optional 19200 baud rate
Optional functions Data fusion
