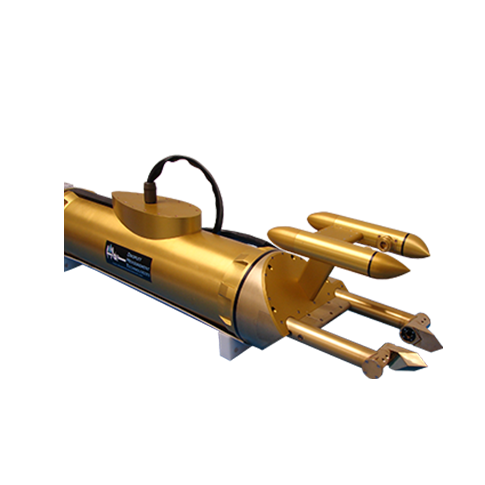

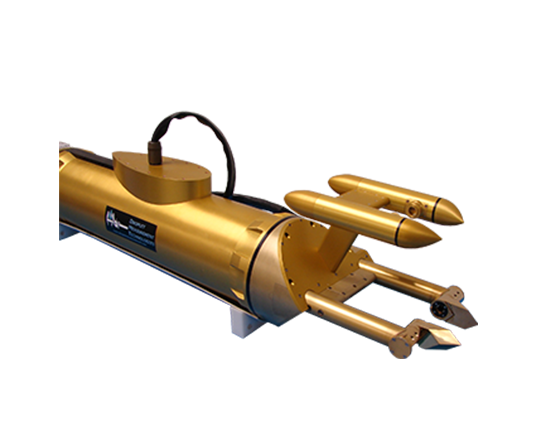

Cloud Combination Probe (CCP)

Advantage Characteristics

Use the optional grayscale imaging and fine-resolution features (for the CIP) to get more clarity on particle composition. Reduce the incidence of particle artifacts with optional Korolev anti-shatter tips (CIP feature), and keep your CIP instrument performing optimally with optional 8 VDC or 115 VAC anti-ice heaters. Get five measurements packaged into a single canister to enable optimized measurement of cloud particles prior to and during transition to precipitation.

Get more precise information on individual particle sizes with the optional PBP feature – including particle size in digital counts, individual particle time with μsec resolution, and inter-arrival particle time (IPT). See data on aerosol particle and cloud hydrometeor size distributions from 2 μm to 50 μm, two dimensional images and precipitation size distributions from 25 μm to 1550 μm (or 2 μm to 930 μm if the CIP component is ordered with 15-μm resolution), and liquid water content from 0.05 g/m3 to 3 g/m3.

Technical Parameter

Technique CIP: Optical Array Probe with 64 elements: 62 sizing elements, end diodes reject; CDP: Light-scattering probe with 30 size bins; LWC: Temperature-Controlled Hotwire Sensor
Measured particle size range CIP: 12.5 µm – 1.55 mm (standard) ; CDP: 2 µm to 50 µm; LWC :N/A; measured LWC range is 0 - 3 g/m³
Sample area CIP: Variable; depends on tip configuration and particle size; CDP: 0.24 mm² ; LWC : N/A
Upper concentration range CIP: Depends on particle size, but up to 500 particles/ cm³ for a CIP with standard tips and arm width; CDP: 2,000 particles/cm³ ;LWC : 3 g/m³
Air speed range CIP:10 - 300 m/s for 25 μm resolution CIP; 10 - 180 m/s for 15 μm CIP; CDP:10 - 250 m/s; LWC : 10 - 200 m/s
Number of size bins CIP: 62; CDP: 30; LWC : N/A
Sampling frequency CIP: 1D histogram data: 0.05 to 25 Hz 2D image data: variable interval, when buffer fills; CDP: Selectable, 0.05 to 25 Hz; LWC : N/A
Laser CIP: 658 nm, 30 mW ; CDP: 658 nm, ~50 mW ; LWC : N/A
Non-absorbing refractive index CIP: N/A ; CDP: 1.33 (the industry standard for water); Hotwire LWC :N/A
Light collection angles CIP: N/A ; CDP: 4° - 12° ; LWC: N/A
Auxiliary parameters Ambient Temperature Relative Humidity Static Pressure Dynamic Pressure(CIP)
Data system interface 2D CIP data: RS-422, High Speed, 4 Mb/sec Baud Rate System data: RS-422, 56.6 kb/sec Baud Rate
Weight 29 lbs./13.2kg for probe and canister
Power requirements System Power bus: 28 VDC, 3A Auxiliary bus (formerly “LWC bus”): 28 VDC, up to 8A (depends on LWC content) CIP Anti-Ice bus: 28 VDC, 13A CDP Anti-Ice bus:28 VDC, 7A
Environmental operating conditions Temperature: -40 °C to +40°C (-40 °F to +104 °F) RH: 0 – 100%, non-condensing Altitude: 0 - 50,000 ft
