Aerosol Generation System (AGS)

The AGS is an instrument which is simple to use, cost effective and controllable constant output aerosol generation.

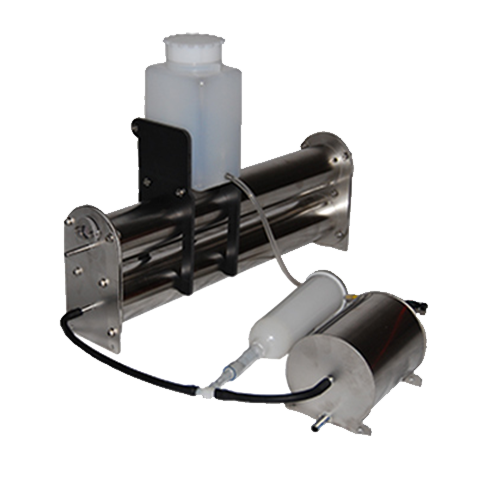

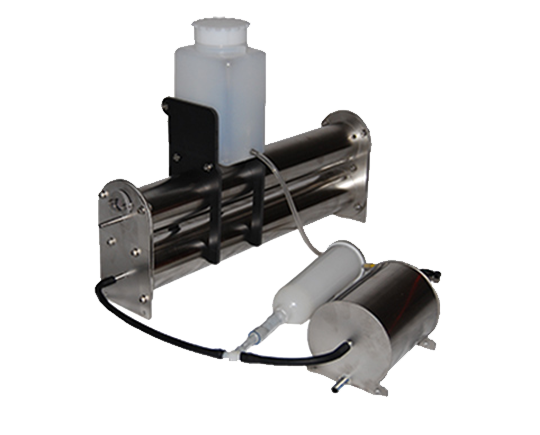

Product Description The Model 9200 AGS is an ideal tool to generate known composition and size aerosol for laboratory experiments and instrument characterization studies. It delivers constant and controllable aerosol generation in an easy-to-use, chemically-inert stainless-steel design. The AGS has been successfully deployed at remote climate monitoring sites integrated with the Brechtel HTDMA to allow automatic periodic sampling of AGS-generated particles to validate HTDMA operation during long-term ambient sampling. The optional syringe pump accessory provides ultra-precise output concentration control for applications requiring extremely stable aerosol concentrations. Automation options are also available to allow a user supplied digital control to turn on the AGS and switch instruments to sample the generated aerosol.

Advantage Characteristics

Technical Parameter

Application Scope

Advantage Characteristics

Easy-to-change dryer desiccant with included funnel All stainless steel construction to avoid chemical artifacts associated with plastics or glass Automation options available to control air and liquid supply

In-line desiccant dryer to dry droplets Very constant output atomizer Controllable liquid flow rate to sprayer Atomizer sprays into a chamber to avoid backup and clogging of flow channels Atomizer sample air flow rate 2-7 lpm

Technical Parameter

Air flow rate inside atomizer chamber 2 to 7 lpm
Atomizer liquid flow rate 0.1 to 6 ml/hr
Droplet diameter at 30 psig 1.0 micron
Droplet diameter at 50 psig 0.8 micron
Mode particle diameter at 30 psig (0.025% NaCI) 50 nm
Mode particle diameter at 50 psig (0.025% NaCI) 45 nm
Typical output concentrations 1,000 - 200,000 cm^-3
Atomizer chamber size 4”dia. x 5” length/10.2 x 12.7 cm
In-line dryer size (x2 cylinders) 2.5” dia. x 18” length/6.4 x 45.7 cm
In-line dryer desiccant capacity 0.75 gallon/2.84 lt
Atomizer bottle capacity 1,000 ml
Dimensions 19 x 26 x 8 in/48.3 x 66 x 20.3 cm
Total system weight 20 lbs/9 kg
Operating temperature range 15-45° C
Operating pressure range 0.7 to 1 atm
Construction Stainless steel
