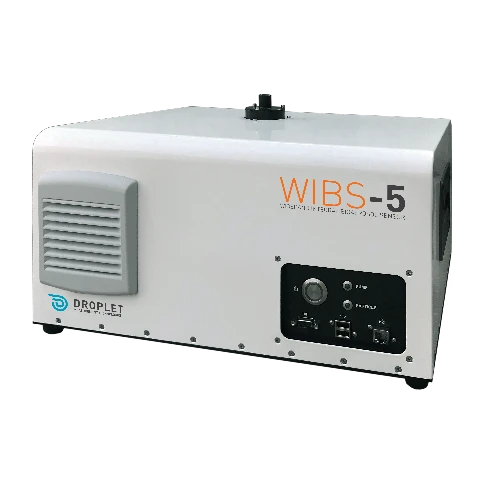

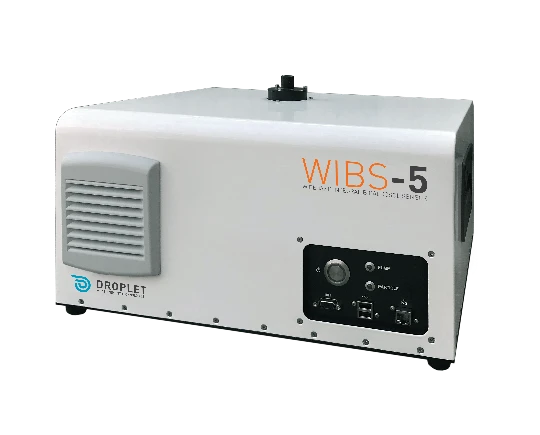

Wideband Integrated Bioaerosol Sensor (WIBS-5)

Home ＞ Products ＞ Meteorological Instruments ＞ Black Carbon / Aerosol ＞ Wideband Integrated Bioaerosol Sensor (WIBS-5) ＞ Wideband Integrated Bioaerosol Sensor (WIBS-5)

The Wideband Integrated Bioaerosol Sensor instrument is made by Droplet Measurement Technologies.

Product Description The WIBS is the world’s only instrument for real-time, single particle measurement of atmospheric bacteria, molds, pollen, and other bioaerosols. WIBS measures fluorescence to infer the presence of biological material in particles and provides detailed data on size, relative measure of shape, and fluorescent properties to enable classification of pollen, bacteria, and fungi.。

Advantage Characteristics

Technical Parameter

Application Scope

Advantage Characteristics

Graphical user-interface details: Measure particles in real time and see housekeeping parameters to monitor instrument health and enhance operational uptime. Research versatility: Get more flexibility for your different research applications. Collect measurements and data on the ground or in the air. Particles-by-particles data: Get specific data for particles from 0.5 to 30 µm, as well as particle time-of-flight to detect coincidence; configurable to measure larger particles such as pollens and fungal spores.

High sensitivity: Measure trace amounts of mold and other bioaerosols in the atmosphere. Particles-by-particles data: Get specific data for particles from 0.5 to 30 µm, as well as particle time-of-flight to detect coincidence; configurable to measure larger particles such as pollens and fungal spores. Advanced data filtering: Enables selection of filter criteria for both full and partial measurements. Filter data using a wide variety of criteria: particle size, asymmetry, and concentration; fluorescent excitation and emission; or ratios of any of these parameters.

Technical Parameter

Maximum concentration 466 particles/cm³ for fluorescent particle counting (10% coincidence) 9,500 particles/cm³ for sizing and counting (10% coincidence)
Fluorescence excitation 280 nm, 370 nm
Fluorescence emission 310-400 nm, 420-650 nm
Flow rate Sample: 0.3 L/min
Particle size range 0.5 to 30 µm
Sheath 2.1 L/min
Power reqiurements 100W, 90-230 VAC or 24 VDC at 3.0A
Weight 27.5 lbs
Dimensions 17.75
